產品說明
貼片非屏蔽功率電感--SD系列
SD Unshielded Power Inductors
SD0301 / SD0302 / SD0402 / SD0403 / SD0503 / SD0504
SD0703 / SD0705 / SD1004 / SD1005
Features (特長)
● Open Magnetic circuit construction (開磁路構造設計)
● Compact and thin (輕便薄小)
● Put the electrode with ferrite core directly, a small surface area allow a high mounting density. (直接電極設計、降低零件高度)
Applications (用途)
● VTR, OA equipment, LCD television set, Notebook, portable communication equipments, DC/DC converters, etc.. (錄放影機、OA儀器、液晶電視、筆記型電腦、小型通信機器、直流轉換器等)
Product Identification (產品識別)
SD0302 - (Ex. SD0302-1R0M)
1 2 3
(1) SMT Unshielded Power Inductors (開放式功率電感)
(SD0301 / SD0302 / SD0402 / SD0403 / SD0503 / SD0504
SD0703 / SD0705 / SD1004 / SD1005)
(2) Inductance (電感值)
(3) Tolerance (誤差值) ( J 5%, K 10%, L 15%, M 20%, N 30% )

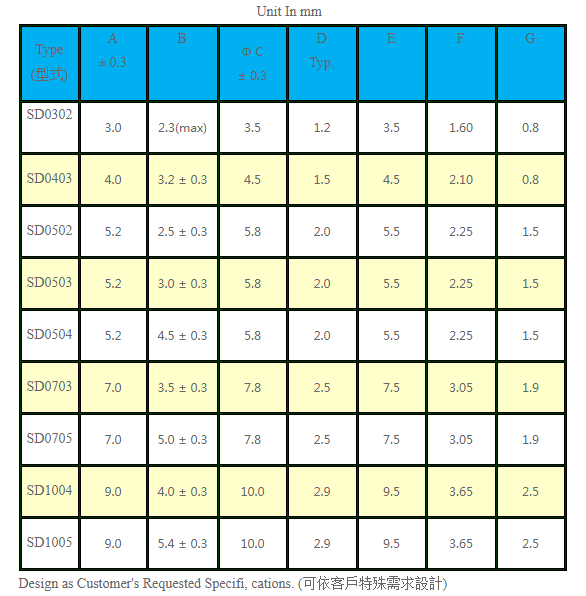

Configurations & Dimensions (結構圖及規格尺寸)
